Stop Valve is ideal for small plumbing and it is used to start, stop and regulate flow of water. The design and construction of Stop Valve provides a tight seal with fewer chances of leakage compared to other types of valves.
JOINTING CONCEPT
FENGYE’s PE Stop Valves is based on the concept of Socket Fusion joint with HDPE Pipes that form homogenized material joints and eliminates the use of additional male or female thread fittings. These direct jointing’s are durable and permanent with leakage free performance.
Stop Valve is ideal for small plumbing and it is used to start, stop and regulate flow of water. The design and construction of Stop Valve provides a tight seal with fewer chances of leakage compared to other types of valves.
JOINTING CONCEPT
FENGYE’s PE Stop Valves is based on the concept of Socket Fusion joint with HDPE Pipes that form homogenized material joints and eliminates the use of additional male or female thread fittings. These direct jointing’s are durable and permanent with leakage free performance.
DESIGN & BUILD
The working principle of Stop Valve is based on the movement of plug-like disc connected to the stem and handle by a screw mechanism, raising up to allow flow and moving down to throttle flow. For the critical moving and high impact parts, they are made of metal.

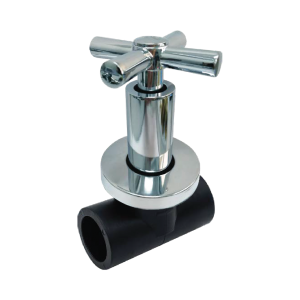

In order to fulfill the requirement of wall concealed application and to improve the architectural impression, the standard valve can be retrofitted with an extended shaft, easy to grip cross handle, extended sleeve and adjustable wall flange cover. All of these components are coated with high-end quality chrome finishing.
DESIGN & BUILD
The working principle of Stop Valve is based on the movement of plug-like disc connected to the stem and handle by a screw mechanism, raising up to allow flow and moving down to throttle flow. For the critical moving and high impact parts, they are made of metal.
In order to fulfill the requirement of wall concealed application and to improve the architectural impression, the standard valve can be retrofitted with an extended shaft, easy to grip cross handle, extended sleeve and adjustable wall flange cover. All of these components are coated with high-end quality chrome finishing.

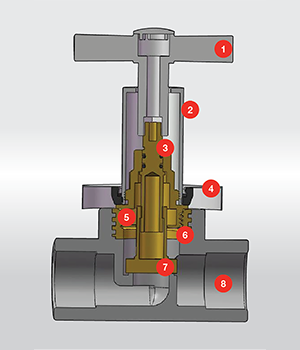

| Chrome Cross Handle Stop Valves | |||
| Sizes | 20mm (1/2”) | 25m (3/4”) | 32mm (1”) |
| Pressure Rating | PN16 | PN16 | PN16 |
| Flow Rate | 0.2 l/s | ||
| 1. Cross Handle | Chrome Zinc Alloy | ||
| 2. Sleeve | Chrome Zinc Alloy | ||
| 3. Stem | Brass CW617N | ||
| 4. Wall Flange | Chrome Stainless Steel | ||
| 5. Bonnet | Brass CW617N | ||
| 6. Body Insert | Brass CW617N | ||
| 7. Disc | Brass CW617N | ||
| 8. Body | PE |

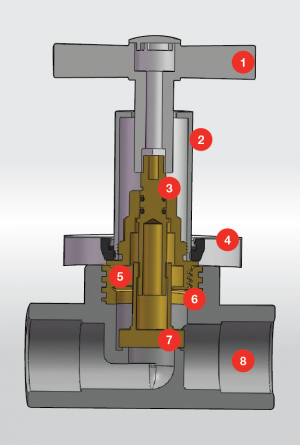

| Chrome Cross Handle Stop Valves | |||
| Sizes | 20mm (1/2”) | 25m (3/4”) | 32mm (1”) |
| Pressure Rating | PN16 | PN16 | PN16 |
| Flow Rate | 0.2 l/s | ||
| 1. Cross Handle | Chrome Zinc Alloy | ||
| 2. Sleeve | Chrome Zinc Alloy | ||
| 3. Stem | Brass CW617N | ||
| 4. Wall Flange | Chrome Stainless Steel | ||
| 5. Bonnet | Brass CW617N | ||
| 6. Body Insert | Brass CW617N | ||
| 7. Disc | Brass CW617N | ||
| 8. Body | PE |
STOP VALVE
CHROME HANDLE
STOP VALVE
STOP VALVE
CHROME HANDLE
STOP VALVE
